How do I add a disk to a VG in an active Metrocluster ( CA/XP )

How do I add a disk to a VG in an active Metrocluster (CA/XP)?
# These items are as I used them on my system
# Substitute with your own values!!!!!!!!!
# HORCMINST : 200
# dev_group : p01oms
# dev_name : p01oms_00, p01oms_01, p01oms_02 etc...

# Export the HORCM instance number you want to work with

->  export HORCMINST=200

1. Find spare disk
*** Hint: use xpinfo -i and raidscan -p -fx, pvdisplay and/or strings the lvmtab file

2. pvcreate disk

3. Add disk to /etc/horcm(?).conf on local system
(Just follow the standard in the file)

4. Add disk to /etc/horcm(?).conf on remote system

5. Stop / start raidmanager (local and remote)
(Note: This is to re-read the config file and does not affect the running packages or cluster)

-> horcmshutdown.sh 200
-> horcmstart.sh 200

7:  Check using pairdisplay -g xxxxx -fx (disks will show SMPL)
->pairdisplay -g p01oms -fx | more

8:  paircreate the new disks
# Syntax: paircreate -g -vl -f -c

 -> paircreate -g p01oms p01oms_25 -vl -c 15 -f data
 -> paircreate -g p01oms p01oms_26 -vl -c 15 -f data

9. Check the status with pairdisplay
->pairdisplay -g p01oms -fx # (Will show COPY)

10. vgextend vg's on local host

11. Do a pairsplit
-> pairsplit -g p01oms -rw

12. Create mapfile with vgexport -s -p on local host and rcp to remote host

13. On remote host, vgexport, then vgimport

14. Do a pairresync
 ->pairresync -g p01oms -c 15
Read more!

Business Copy Pair Status Conditions

Pair Status

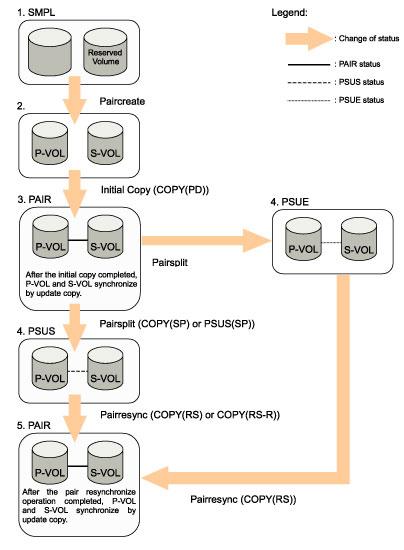

The following figure illustrates the Business Copy pair status transitions and the relationship between the pair status and the Business Copy operations.

Figure Business Copy Pair Status Transitions

1. If a volume is not assigned to a Business Copy pair, the volume's status is SMPL.

2. Select the SMPL volumes for P-VOL and S-VOL to create a Business Copy pair. When you create a Business Copy pair, the initial copy operation starts. During the initial copy operation, the status of the P-VOL and S-VOL changes to COPY(PD).

3. When the initial copy operation is complete, the pair status becomes PAIR. When the initial copy is completed, the differential data between the P-VOL and the S-VOL will be copied by the update copy.

4. There are two kinds of pair status (PSUS and PSUE) when the pair is not synchronized.

     • When you split a pair (pairsplit), the pair status changes to PSUS. During the pairsplit   process, the pair status becomes COPY(SP). If you specify Quick Split pairsplit, the pair status becomes PSUS(SP) during the process. When the pairsplit operation is complete, the pair status changes to PSUS to enable you to access the split S-VOL. The update copy operation is not performed on the pairs that have status PSUS.

     • If the storage system cannot maintain PAIR status for any reason, or if you suspend the pair (pairsplit-E), the pair status changes to PSUE. 5. When you start a pairresync operation, the pair status changes to COPY(RS) or COPY(RS-R). When the pairresync operation is complete, the pair status changes to PAIR.

     • When you specify Reverse Copy or Quick Restore mode for a pairresync operation, the pair status changes to COPY(RS-R).

     • When you delete a pair (pairsplit-S), the status of the volumes that were used by the pair changes to SMPL. You cannot delete the pair that has status PSUS(SP).

Business Copy Pair Status

The following table lists and describes the Business Copy pair status conditions.

Read more!

Fibre Channel Internals - Flow Control

IBM redbooks - Introduction to Storage Area Networks is a nice ebook to have, I liked the book particularly for its description on SAN Basics and FC Internals, here is an excerpt on Flow Control.

Flow control
Now that we know data is sent in frames, we also need to understand that devices need to temporarily store the frames as they arrive, and until they are assembled in sequence, and then delivered to the upper layer protocol. The reason for this is that due to the high bandwidth that Fibre Channel is capable of, it would be possible to inundate and overwhelm a target device with frames. There needs to be a mechanism to stop this happening. The ability of a device to accept a frame is called its credit. This credit is usually referred to as the number of buffers (its buffer credit) that a node maintains for accepting incoming data.

Buffer to buffer
During login, N_Ports and F_Ports at both ends of a link establish its buffer to buffer credit (BB_Credit). Each port states the maximum BB_Credit that they can offer and the lower of the two is used.

End to end
At login all N_Ports establish end to end credit (EE_Credit) with each other. During data transmission, a port should not send more frames than the buffer of the receiving port can handle before getting an indication from the receiving port that it has processed a previously sent frame.

Controlling the flow
Two counters are used to accomplish successful flow control: BB_Credit_CNT and EE_Credit_CNT, and both are initialized to 0 during login. Each time a port sends a frame it increments BB_Credit_CNT and EE_Credit_CNT by one. When it receives R_RDY from the adjacent port it decrements BB_Credit_CNT by one, and when it receives ACK from the destination port it decrements EE_Credit_CNT by one. If at any time BB_Credit_CNT becomes equal to the BB_Credit or EE_Credit_CNT equal to the EE_Credit of the receiving port, the transmitting port has to stop sending frames until the respective count is decremented. The previous statements are true for Class 2 service. Class 1 is a dedicated connection, so it does not need to care about BB_Credit and only EE_Credit is used (EE Flow Control). Class 3 on the other hand is an unacknowledged service, so it only uses BB_Credit (BB Flow Control), but the mechanism is the same on all cases.

Performance
Here we can see the importance that the number of buffers has in overall performance. We need enough buffers to make sure the transmitting port can continue sending frames without stopping in order to use the full bandwidth. This is particularly true with distance. At 1 Gbps a frame occupies between about 75 m and 4 km of fiber depending on the size of the data payload. In a 100 km link we could send many frames before the first one reaches its destination. We need an acknowledgement (ACK) back to start replenishing EE_Credit or a receiver ready (R_RDY) indication to replenish BB_Credit. For a moment, let us consider frames with 2 KB of data. These occupy approximately 4 km of fiber. We will be able to send about 25 frames before the first arrives at the far end of our 100 km link. We will be able to send another 25 before the first R_RDY or ACK is received, so we would need at least 50 buffers to allow for nonstop transmission at 100 km distance with frames of this size. If the frame size is reduced, more buffers would be required to allow nonstop transmission.

Read more!

Zoning Brocade switches - Tutorial

Zoning Brocade switches - Tutorial

This tutorial provides a quick walk-through of setting up zoning on a Brocade switch. It is not a comprehensive review of the topic, but it may give you some familiarity with the commands and syntax necessary to set up zoning in the Brocade environment.

What is zoning?

Zoning provides a way to logically group together the components of a SAN. Ports, interfaces and even switches themselves can be grouped together into configurations that work together to make SANs more orderly and less daunting.

Managing configurations

All zoning in the Brocade environment is done within configurations. A configuration contains aliases and zones.

An alias is a tool to simplify repetitive port numbers or WWN entries into an easy-to-remember name. For instance: rather than typing in the WWN "50:00:0e:10:00:00:00:17" in zoning operations, one could use an alias to identify the WWN as being "DF350_intfc_0". Aliases can also be used to identify multiple ports or WWNs by a single name. All zoning commands accept aliases as valid parameters.

A zone is a set of devices that access one another. All devices connected to a Fabric may be configured into one or more zones. Devices that are in the same zone can see each other, devices that are in different zones can not.

Commands used in this example

alicreate : Creates new zone aliases. Assigns a name to a list of alias members. Alias members can include port numbers (for example; 1,2 indicates switch 1, port 2) or WorldWide? names. If there are multiple alias members, all members must be separated by semicolons within the list of alias members.

example : alicreate "df350_intfc_0", "50:00:0e:10:00:00:00:17"

zonecreate : Groups a list of zone members under a zone name. Zone members can include port numbers, WorldWide? names, or aliases created by the alicreate command. Multiple zone members must be separated by semicolons within the list of zone members.

example : zonecreate "c2zone", "snowtop_c2; df350_intfc_1"

cfgcreate : Assigns a configuration name to a list of configuration members. The configuration members are all zones Multiple configuration members are separated by semicolons.

example : cfgcreate "c2config", "c2zone"

cfgenable : Checks a specified configuration for errors and makes it the active configuration of the switch. Note: No zoning is applied to the switch until the cfgenable command completes successfully. If there is already an active configuration, cfgenable will replace the active configuration with the specified configuration.

example : cfgenable "c2config"

cfgdisable : Deactivates a specified configuration

example : cfgdisable "c2config"

cfgsave : Saves zoning information to switch's flash memory. Configuration will not survive a reboot of the switch until the configuration is saved.

cfgclear : Deactivates and removes all zoning information from active memory. To remove a configuration from flash memory, run cfgsave after cfgclear.

zoneshow : Shows zoning configuration.

switchshow : Shows overall configuration of switch. WWNs, login types (F-port, L-Port etc.) port status and some general switch info show up in switchshow.

Setting up a zoning configuration

The following example sets up a switch so that the LUNs presented on controller 0 of a DF350 Fibre unit are presented either to controller 2 or controller 3 of a Sun Solaris host depending on which configuration is activated.

Please note : If ANY ports on a switch are in an active zone configuration, ALL ports on the switch MUST be zoned in order to be useable. Since this example only uses ports 4-7 of the switch, ports 0-3 would not be useable until they were included in the active zoning configuration.

Another note : Usually it is best to zone by WWN, rather than by port number. That way, if a port goes bad the user just has to move the affected interface cable to a different port on the switch and the zoning should still be in place.

login: admin

Password:

sw2400_68:admin> switchshow

switchName: sw2400_68

switchType: 3.2

switchState: Online

switchRole: Principal

switchDomain: 1

switchId: fffc01

switchWwn: 10:00:00:60:69:20:13:c0

port 0: sw No_Light

port 1: sw No_Light

port 2: sw No_Light

port 3: sw No_Light

port 4: sw Online F-Port 50:00:0e:10:00:00:00:5d

port 5: sw Online F-Port 50:00:0e:10:00:00:00:17

port 6: sw Online F-Port 20:00:00:e0:69:c0:08:23

port 7: sw Online F-Port 20:00:00:e0:69:c0:08:45

sw2400_68:admin> alicreate "df350_intfc_0", "50:00:0e:10:00:00:00:17"

sw2400_68:admin> alicreate "df350_intfc_1", "50:00:0e:10:00:00:00:5d"

sw2400_68:admin> alicreate "snowtop_c2", "20:00:00:e0:69:c0:08:45"

sw2400_68:admin> alicreate "snowtop_c3", "20:00:00:e0:69:c0:08:23"

sw2400_68:admin> zoneshow

Defined configuration:

alias: df350_intfc_0

50:00:0e:10:00:00:00:17

alias: df350_intfc_1

50:00:0e:10:00:00:00:5d

alias: snowtop_c2

20:00:00:e0:69:c0:08:45

alias: snowtop_c3

20:00:00:e0:69:c0:08:23

Effective configuration:

no configuration in effect

sw2400_68:admin> zonecreate "c2zone", "snowtop_c2; df350_intfc_1"

sw2400_68:admin> zonecreate "c3zone", "snowtop_c3; df350_intfc_1"

sw2400_68:admin> zoneshow

Defined configuration:

zone: c2zone snowtop_c2; df350_intfc_1

zone: c3zone snowtop_c3; df350_intfc_1

alias: df350_intfc_0

50:00:0e:10:00:00:00:17

alias: df350_intfc_1

50:00:0e:10:00:00:00:5d

alias: snowtop_c2

20:00:00:e0:69:c0:08:45

alias: snowtop_c3

20:00:00:e0:69:c0:08:23

Effective configuration:

no configuration in effect

sw2400_68:admin> cfgcreate "c2config", "c2zone"

sw2400_68:admin> cfgcreate "c3config", "c3zone"

sw2400_68:admin> zoneshow

Defined configuration:

cfg: c2config

c2zone

cfg: c3config

c3zone

zone: c2zone snowtop_c2; df350_intfc_1

zone: c3zone snowtop_c3; df350_intfc_1

alias: df350_intfc_0

50:00:0e:10:00:00:00:17

alias: df350_intfc_1

50:00:0e:10:00:00:00:5d

alias: snowtop_c2

20:00:00:e0:69:c0:08:45

alias: snowtop_c3

20:00:00:e0:69:c0:08:23

Effective configuration:

no configuration in effect

sw2400_68:admin> cfgenable "c2zone"

error: "c2zone" is not a configuration

sw2400_68:admin> cfgenable "c2config"

zone config "c2config" is in effect

sw2400_68:admin> zoneshow

Defined configuration:

cfg: c2config

c2zone

cfg: c3config

c3zone

zone: c2zone snowtop_c2; df350_intfc_1

zone: c3zone snowtop_c3; df350_intfc_1

alias: df350_intfc_0

50:00:0e:10:00:00:00:17

alias: df350_intfc_1

50:00:0e:10:00:00:00:5d

alias: snowtop_c2

20:00:00:e0:69:c0:08:45

alias: snowtop_c3

20:00:00:e0:69:c0:08:23

Effective configuration:

cfg: c2config

zone: c2zone 20:00:00:e0:69:c0:08:45

50:00:0e:10:00:00:00:5d

What does this configuration look like on the Sun Solaris host?

After a reconfiguration boot, this is what the host sees when the " c2config " configuration is used on the switch.

# format

Searching for disks...done

c2t0d1: configured with capacity of 32.45GB

c2t0d2: configured with capacity of 15.51GB

AVAILABLE DISK SELECTIONS:

0. c0t0d0
/pci@1f,4000/scsi@3/sd@0,0
1. c2t0d0
/pci@6,4000/fibre-channel@2/sd@0,0
2. c2t0d1
/pci@6,4000/fibre-channel@2/sd@0,1
3. c2t0d2
/pci@6,4000/fibre-channel@2/sd@0,2

Changing the configuration
To change the configuration, simply log into the switch and activate the " c3config " configuration that we created earlier.

sw2400_68:admin> cfgenable "c3config"
zone config "c3config" is in effect

After a reconfiguration boot, the Sun Solaris host now sees the new configuration. The LUNs that used to be presented to controller 2 are now presented to controller 3:

# format
Searching for disks...done

c3t0d1: configured with capacity of 32.45GB
c3t0d2: configured with capacity of 15.51GB

AVAILABLE DISK SELECTIONS:
0. c0t0d0
/pci@1f,4000/scsi@3/sd@0,0
1. c3t0d0
/pci@6,4000/fibre-channel@3/sd@0,0
2. c3t0d1
/pci@6,4000/fibre-channel@3/sd@0,1
3. c3t0d2
/pci@6,4000/fibre-channel@3/sd@0,2

THE ABOVE TUTORIAL WAS GATHERED FROM https://tuf.hds.com/gsc/bin/view/Main/BrocadeZoning

Read more!
