RAID - Redundant Array of Independent Disks

This will explain the base function and data layout for the different levels of RAID.Each level or type of RAID data layout has specific performance and redundancy characteristics.These characteristics allow you to custom configure RAID sets to your performance criteria.Understanding the basics of RAID data layout is the first step to purchasing a RAID subsystemthat meets today's and tomorrow's storage requirements.

Let's get some terminology out of the way

The time it takes to find, recover and start delivering data. If we were talking about a single disk,"access time" would be the time the disk took to receive the command, move the heads to the correct position,wait for the disk to rotate to the correct location and start to read. Access time is particularly importantto multi-user and database environments. These environments have many many requests to the same data.These requests do not necessarily involve long data transfers. "Access Time" is important when deciding what level of RAID you will implement.

An "array" is a grouping of disk drives. There could be two disk drives in the "array" or there could be 100 disk drives in the array.

The breaking up of data so that it can be stored across multiple disk drives. Imagine breaking up a 80 Kb file into five 16 Kb pieces. These 16 Kb pieces would be referred to as "chunks". Another commonly used term is STRIPE.

Term used to indicated what the percentage of total storage is dedicated to providing data redundancy.

A "disk set" is a specific number of drives grouped together with a single characteristic (e.g., RAID 0 , RAID 5). A "disk set" can encompass a whole "array" or be a subset of the "array". In other words, there can be multiple "disk sets" in an array. A "disk set" will present itself to an operating systems as an individual disk drive. This will be important later when you are actually buying and configuring a RAID subsystem. "Disk Set" is also referred to as RAID SET.

"Duplexing" is when members of a "disk set" are spread across different SCSI busses. This is important for two reasons, it relieves dependance on one SCSI bus in the event of failure and increases performance by moving data across two different busses simultaneously.

Data is stored twice (or more) on two or more different disk drives. Shadowing is a commonly shared term with "mirroring". Easy definition - What is written on one disk is written on another disk.

Parity is a mathematical equation that allows data to be checked for integrity. It should be noted that the term parity is loosely used, the net effect is that data is generated that allows the stored data to be checked for integrity.

RAID levels 3, 4 and 5 have a dedicated drive for storing parity information. This information may stay on one disk or move between disks as parity chunks.

The breaking up of a "disk set" into smaller segments. The smaller segments will appear as individual disk drives to the host, while still maintaining the RAID properties of the "disk set".

A "RAID SET" is a specific number of drives grouped together with a single characteristic (e.g., RAID 0 , RAID 5). A "RAID Set" can encompass a whole "array" or be a subset of the "array". Another words there can be multiple "disk sets" in an array. A "RAID Set" will present itself to an operating systems as an individual disk drive. This will be important later when you are actually buying and configuring a RAID subsystem. "RAID Set" is also referred to as DISK SET.

The breaking up of data so that it can be stored across multiple disk drives. Imagine breaking up a 80 Kb file into five 16 Kb pieces. These 16 Kb pieces would be referred to as "stripes". Another commonly used term is CHUNKS.

How fast the RAID set or subsystem can transfer the data to the host. "Transfer Rate" is important when large contiguous blocks of data are being used. Video and image files are examples of large contiguous file transfers that occur in streaming mode. "Transfer Rate" is important when deciding what level of RAID you will implement.

RAID 0  -  Data Striping

RAID 0 allows a number of disk drives to be combined and presented as one large disk. RAID 0 does not provide any data redundancy - if one drive fails, all data is lost.

Access Time               Very Good
Transfer Rate             Good
Redundancy                None
Cost Per Megabyte         None
Applications Large disk requirements, high performance databases

RAID 1 -  Disk Mirroring/Disk Duplexing

RAID 1 mirrors (shadows) one disk drive to another. All data is stored twice on two or more identical disk drives.  When one disk drive fails, all data is immediately available on the other without any impact on the  data integrity - performance in degraded mode is also degraded. Performance is gained by splitting of functions. If multiple read requests are pending, the RAID controller will allows reads from different disk drives. If one disk is busy writing the other disk drive can supply read data, at a later time. The RAID controller will update the read drive with data from the already written disk drive. If each disk drive is connected with a separate SCSI channel, this is called "Disk Duplexing" (additional security and performance). RAID 1 represents a simple and highly efficient solution for data security and system availability. Use RAID 1 when large volumes of data are not required.

Access Time               Very Good
Transfer Rate              Good
Redundancy                Yes
Cost Per Megabyte      100% or more
Applications               Small disk capacities that require redundancy

RAID 0 + 1  -  Combination of RAID 1 and RAID 0

The idea behind RAID 0+1 is simply based on the combination of RAID 0 (Performance) and RAID 1 (Data Security).RAID 0+1 disk sets offer good performance and data security. Similar as in RAID 0, optimum performance is achieved in highly sequential load situations. The major draw back is a 100% "Cost Per Megabyte Penalty".

Access Time               Very Good
Transfer Rate              Good
Redundancy                Yes
Cost Per Megabyte      100%
Applications Multiuser environments, database servers, file serving, web site hosting

RAID 3 Data Bit Striping With a Dedicated Parity Drive

The data is striped at a byte/bit level across the disk drives. Additionally, the controller calculates parity information which is stored on a separate disk drive (aP, bP, ...). Even when one disk drive fails, all data is fully available. The missing data can be recalculated from the data still available and the parity information. This data calculation can also be used to restore data to a replaced defective disk. Because the data must be presented at the same time, the disk drive spindles must be synchronized for RAID 3 to be effective. This represents a practical implementation problem for RAID 3. Many RAID controller manufacturers are moving to a RAID 4 solution or using the term RAID 3 merely as a recognized marketing term for high data transfer capability.

Access Time               Good
Transfer Rate              Very Good
Redundancy                Yes
Cost Per Megabyte       Varies.  5 drive set = 20%, 6 drive set = 17%, 10 drive set = 10%
Applications                Imaging, geological, seismological, video

RAID 4 - Data Striping With a Dedicated Parity Drive

RAID 4 works just like RAID 0. The data is striped across disk drives. Additionally, the controller calculates parity information which is stored on a separate disk drive
(P1, P2,...). Even when one disk drive fails, all data is fully available. The missing data can be recalculated from the data still available and the parity information. This data calculation can also be used to restore data to replaced defective disk. RAID 4 offers excellent transfer rates when used with large contiguous blocks of data. When used with with many small data blocks, the parity disk drive becomes a throughput bottle-neck because of it's fixed position. A RAID 4 disk set can only loose one disk from it's RAID set. Loosing another disk drive, before a replacement is restored, will loose all data in the RAID set.

Access Time               Good
Transfer Rate              Very Good
Redundancy                Yes
Cost Per Megabyte      Varies.  5 drive set = 20%, 6 drive set = 17%, 10 drive set = 10%
Applications               Imaging, geological, seismological, video

RAID 5 -  Data Striping with Striped Parity

The data is striped across disk drives. Unlike RAID 4, the parity data in a RAID 5 set is striped across all disk drives. RAID 5 is designed to handle small data blocks. This makes RAID 5 the level of choice for multitasking, multiuser and database environments. RAID 5 offers the same level of security as RAID 4: when one disk drive fails, all data is
fully available, the missing data is recalculated from the data still available and the parity information. This data calculation can also be used to restore data to replaced defective disks. RAID 5 is particularily suited for systems with medium to large capacity requirements, with their "Cost Per Megabyte Penalty" is relatively low. A RAID 5 disk set can only loose one disk from it's RAID set. Loosing another disk drive, before a replacement is restored, will loose all data in the RAID set.

Access Time               Very Good
Transfer Rate              Good
Redundancy                Yes
Cost Per Megabyte      Varies.  5 drive set = 20%, 6 drive set = 17%, 10 drive set = 10%
Applications               Multiuser environments, database servers, file serving, web site hosting

JBOD -  Just a Bunch Of Disks

An allowance was made by virtually all RAID control manufacturers for adding a single disk inder the RAID controller that would not be a part of any RAID Set. A "JBOD" disk drive appears to the host as an add-on disk drive. Using JBODs is a convenient way of adding quick storage. If a JBOD disk drive breaks all data is lost

Access Time               Good
Transfer Rate              Good
Redundancy                No
Cost Per Megabyte      None
Applications               Quick increase in capacity

Mixing RAID Sets in a Disk Array
The following diagram illustrates that within a Disk Array many different RAID levels and capacities can be configured. This allows a RAID user to custom configure RAID level characteristics with the user's many different performance and capacity requirements.

Read more!

SAN Fundamentals: How Fibre Channel SANs Are Built, Secured and Managed

This document discusses the core technologies that are used to build and secure Fibre Channel based Storage Area Networks.

What Is Fibre Channel?
Fibre Channel is a flexible standards based networking architecture that can be used as a transport mechanism for a number of Upper Level Protocols. The most common Upper Level Protocols are SCSI and TCP/IP. Fibre Channel is a Serial Full Duplex protocol. It has sophisticated flow control allowing it to be extended over long distances.

How Fast Is Fibre Channel?
Fibre Channel first became available at 1 Gbit, but by the time SANs became popular 2 Gbit Fibre Channel was shipping, and this is the speed most commonly used. 4 Gbit Fibre Channel products are now available and 8 Gbit products are under development. 4 Gbit equipment is, and 8 Gbit will be, backwardly compatible with 2 Gbit equipment. 10 Gbit Fibre Channel was a subject of wide discussion within the industry a few years ago and some 10 Gbit products were released, but it is not backwardly compatible with earlier Fibre Channel equipment so its usage is limited.

What Is a Storage Area Network?
Within this document, the term Storage Area Network (SAN) is used to describe a Fibre Channel network over which SCSI-FCP (SCSI over Fibre Channel) protocols run.

What About IP Based SANs?
The term SAN is now commonly extended to include iSCSI based solutions which run over a LAN/WAN infrastructure, not Fibre Channel. Reference (iv) provides detailed information on iSCSI and IP SANs and positions them relative to Fibre Channel SANs.

Fibre Channel Switches and Fabrics

What Is a Fabric?
A Fibre Channel switch on its own, or two or more switches connected together, forms a Fibre Channel Fabric. A switch can only be in one Fabric. Some large switches can now be partitioned into what are effectively multiple switches, but each partition is still in only one Fabric.

The primary function of a Fabric is to correctly route traffic from one port to another, where the source (initiator) and destination (target) ports may or may not be connected to the same switches but must be in the same Fabric (unless Fibre Channel Routers are used, see later section).

SANs are usually comprised of at least two separate Fabrics, for redundancy. Servers and storage have connections to both Fabrics for resilience and server side software multipaths between the paths.

The below figure shows four servers attached via redundant Fabrics to a storage array.

Server Host Bus Adapters
To be able to connect to a SAN a server requires one or more Fibre Channel Host Bus Adapters (HBAs) to be installed and configured. Fibre Channel HBAs handle all the processing of the Fibre Channel stack using onboard ASICs.

Fabric Name Server
The Fibre Channel standard defines a name service called the Fabric Simple Name Server. The "Simple" is commonly omitted. The Fabric Name Server stores information about all the devices in the Fabric. An instance of the name server runs on every Fibre Channel switch in a SAN.

World-Wide Names
All Fibre Channel devices have a unique IEEE issued 64 bit World-Wide Name (WWN). This is used to identify devices in a SAN.

Some devices allow their WWN to be changed (e.g. some Fibre Channel tape drives) and this can be useful in certain service situations but, as with changing MAC addresses on Ethernet Network Interface Cards, this needs to be done carefully.

Fabric Login
When a device (e.g. server HBA port, array controller port, Fibre Channel tape drive port) is connected to a Fibre Channel switch, it goes through an initialization process called a Fabric Login.

1. The switch registers the device's WWN with the Fabric Name Server which dynamically generates a 24 bit Port Address for the device which is unique within the Fabric.
2. If the device is an initiator (typically a server HBA port) it will then attempt to log in to every other device it can see in the Fabric to find out what it is. This process is required so that the server can discover the characteristics of the devices and so “connect” them correctly to its operating system.

The Port Address assigned to a device describes the location of the device in the SAN. It has information that identifies the switch and switch port the device is connected to. The information provided by the Port Address enables traffic to be routed very efficiently across the Fabric.

Principal Switch
In a Fabric one of the switches is the Principal Switch. It is responsible for keeping all of the Name Server instances in the Fabric up to date. The decision about which switch in a Fabric is Principal can be forced by the administrator, or the switches can be left to decide for themselves using built-in logic. If the Principal Switch fails, another will take over the role automatically.

If a new device is connected to a Fabric, the Name Server on the Principal Switch is responsible for generating a Port Address and notifying all of the other switches. Similarly, if a device is removed from the Fabric, then the Name Server on the Principal Switch is notified and it then sends notifications to all of the other switches.

If a new switch is connected to a Fabric, it exchanges information with the Principal Switch and vice-versa, and then the Name Server on each of the other switches in the Fabric is updated. A switch joining a stable Fabric cannot become the Principal.

Fibre Channel Registered State Change Notifications
Registered State Change Notifications (RSCNs) are the mechanism by which changes in a Fabric are propagated.

RSCNs are generated by a switch when anything changes, e.g. a device connects or disconnects. RSCNs are only sent to devices that have registered with the Fabric to receive them. Only Initiators register to receive RSCNs, target devices do not. Server HBA ports are initiators, ports on arrays (unless the array is replicating out of the port) and tape drives are targets.

Some events, such as enabling or disabling a switch, will cause RSCNs to be sent to all devices in a Fabric that have registered to receive them. Lesser events, such as a server rebooting, cause RSCNs to be sent only to devices in the same zone(s) as the device.

Historically, when a Fibre Channel device received an RSCN, it logged out of the Fabric and then logged back in to the Fabric so that it could query the Fabric Name Service to find out what devices it could now see following the changes. This was a disruptive process and was known to cause problems with Fibre Channel tape drives. The latest switch, HBA and tape firmware complying with the latest Fibre Channel standards for error recovery (FCP-2) minimize the disruption caused by RSCNs and can often handle processing an RSCN in a manner that is not disruptive to I/O.

Inter-Switch Links
Connections between switches are called Inter-Switch Links (ISLs). When switches are connected together with one or more ISLs management information is exchanged and the switches are then in the same Fabric.

Fabrics are expanded in this way to increase the number of ports in a Fabric or to extend the Fabric between buildings. Merging two live Fabrics together needs to be planned carefully. When Fabrics are merged, one switch will become the Principal switch for the new larger Fabric, and new Port Addresses may be given to some devices. This should not create any issues, but is best done at a quiet time.

Switch ports are universal, so any port on a switch can be used for an ISL.

SAN Access Control

Fibre Channel Switch Zones
A zone is made up of a number of devices grouped by their World Wide Names (WWN), or is a group of switch ports.

Zoning information is managed and stored in the Fabric Name Server and is communicated to new switches when they join a fabric.

Devices can only see other devices in the same zone, so zones enable servers and the storage devices they use to be isolated from other servers and their storage devices.

Zones can overlap, i.e. a switch port can be in more than one zone and a device WWN can be in more than one zone.

Zones can span multiple switches, i.e. they can contain device WWNs or ports from anywhere in a Fabric.

For an overview of zones and zoning strategies see reference (i).

Fibre Channel, SCSI LUNs and LUN Masking
What is seen as a LUN today from a server's point of view is more often than not actually a slice, or partition, of a RAID set created within an array that is presented to the SAN by the array RAID controller.

An array presents a Fibre channel port or ports to a SAN and the slices are then presented on the ports using the SCSIFCP protocol, and the servers see them as LUNs. Fibre channel switches see the controller port and its WWN but do not “speak SCSI” and so cannot control access to the slices presented on a port on an individual basis.

As many servers may be sharing an array controller port in a SAN, it is necessary to have a way of controlling access to the slices presented to the SAN, and LUN Masking provides that.

LUN Masking is a function of the array controller. When LUN Masking is enabled, each slice in an array has an access control list which is a list of the WWNs of the HBAs that are allowed to access it. This access control list is defined by the storage administrator using array management tools.

When a server scans the SAN for storage devices, it will only see the slices to which it has been granted access.

Since most servers will be connected to a SAN with at least two HBA ports via two separate Fabrics, access to a slice/partition will have to be granted to both of the server HBA port WWNs.

Using Zoning and LUN Masking Together
Zoning and LUN masking are complementary. Zoning is applied on a device port or WWN and then, where required,
LUN masking is used to control access to individual slices presented by the array port(s).

Extending SANs with Inter-Switch Links

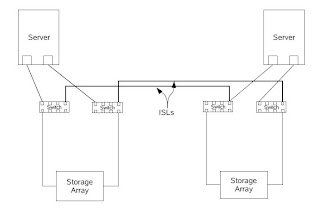

The below figure shows an extended or stretched SAN. This comprises two Fabrics, each with a switch at both sites. A single ISL is shown between the switches in each fabric, but more can be used to improve availability and performance.

This infrastructure could be used to simply share devices between two buildings or sites, for a stretched Cluster, or with arrays that can replicate data over a SAN for Disaster Recovery, or for all three at the same time.

ISLs can be anything up to few hundred meters long with no special equipment required. By using specialist equipment ISLs can be extended over long distance fibre links or over WAN links by tunnelling Fibre Channel over IP, this second option being very popular when replicating between two storage arrays.

Extending SANs over WAN's is discussed briefly in a later section.

Flow Control and Buffer Credits
Fibre Channel switches have sophisticated flow control mechanisms to maximize throughput. This is based on a system of Buffer Credits. Depending on the vendor, a switch may have a pool of Buffer Credits for all of its ports, or a number of Buffer Credits assigned to each port.

In a multi-switch Fabric, every switch will know how many buffers the switches it is connected to have available, as will the server HBAs. Exchanging this information is all part of the Fabric initialization process.

Consider an example where two switches (A & B) are connected together with an ISL, and a server connected to switch is writing to a storage array connected to switch B.

Switch A sends frames (similar to packets in ethernet) across the ISL to Switch B. Switch B receives each frame and immediately routes it on to its destination sending acknowledgements back down the fibre (Fibre Channel is Full Duplex) to Switch A.

Once Switch B has acknowledged receipt of a frame Switch A can clear the buffer that was holding that frame locally, which enables it to receive more frames from the server.

The longer the ISL, the more unacknowledged frames that will be in flight down the fibre at any given time. If all of a Switch A's buffer space is full of unacknowledged frames, latencies will build up in the SAN, and the ISL becomes a bottleneck. Your switch manual will tell you how many buffer credits are available per port and the maximum distances supported between ports at various speeds before you are in danger of running out of Buffer Credits.

SANs are often termed non-blocking. This is not because they have infinite amounts of bandwidth, but because data is never sent somewhere where it does not have a place to go. Fibre Channel networks will not block, but they can become congested.

Joining SANs with Fibre Channel Routers
When extending a SAN with ISLs, the Fabrics span sites. As previously discussed, if two existing Fabrics are joined, a major Fabric re-configuration takes place and no I/O is done whilst it completes. As a one-off event this can be managed, but once the Fabrics are joined, any event generating an RSCN of which all elements in the Fabric need to be notified may generate significant management traffic across the ISLs. More significantly, with the elements being potentially a long way apart, the time required for the Fabric re-configuration to complete could lead to server I/O requests timing out.

These problems can be minimized by careful SAN design and planning. However, Fibre Channel Routers offer an elegant way of sharing devices between Fabrics without merging them.

Fibre Channel Routers are used to map only the specific devices that need to be shared between Fabrics. If a device mapped into one Fabric from another has a Port Address already used within that Fabric, the Router takes care of any address translation required. The Fabrics are not merged, and RSCNs will remain within the local Fabrics.

In the example below ,a server in one Fabric needs to back up to a Fibre Channel tape drive in another. Rather than connect the Fabrics together, we use a Fibre Channel Router to map the drive from one Fabric to the other.

The Router looks like just another Fibre Channel Switch to the Fabrics it is connected to, and the devices it is routing for appear as if connected directly to the local Fabrics.

Most Fibre Channel Routers have the capability of routing over Fibre from Router to Router, and also of tunneling Fibre Channel from Router to Router over IP, so we can extend a SAN as shown below.

In summary, with SAN Routers you can share devices between Fabrics and get the benefits of an extended SAN without the potential vulnerabilities and management issues that simply extending a Fabric with ISLs might cause.

Server Operating Systems and SANs
At a low level within a server's operating system, the driver for the Fibre Channel Host Bus Adapter(s) will present the LUNs and tape drives it discovers in the SAN as SCSI devices, by decoding the SCSI commands from the Fibre Channel frames.

In most Operating Systems the devices are then managed via the standard SCSI driver stack and are handled no differently than direct attached SCSI devices, but in the case of the SolarisTM OS an enhanced driver stack has been developed.

Sun StorEdgeTM SAN Foundation Software
Since the Solaris 8 (4/01) OS, Sun has offered a very high level of integration with Storage Area Networks.

Sun StorEdge SAN Foundation Software (SFS) is used by the Solaris OS to discover SAN attached devices, and includes commands to create and delete device nodes for those devices. It is also known by its code name Leadville.
The SFS is available as patches for the Solaris 8 and Solaris 9 releases on the SPARC® platform, and forms an integral part of the Solaris 10 OS for SPARC and x86/x64 platforms.

See reference (ii) for more on the SFS.

Because the use of multipathing is now so common, server Operating Systems increasingly have their own native multipathing functionality. Examples are Microsoft's MPIO and the Sun StorageTekTM Traffic Manager (SSTM) software for the Solaris OS, also known as MPxIO. Storage vendors now qualify with these native multipathing solutions.

The benefit to customers is that they get multipathing software with the server's operating system at no additional charge, so they no longer need to buy and maintain third-party multipathing software. This reduces costs and simplifies support.

SSTM is provided as patches for the Solaris 8 (4/01) OS and later, and the Solaris 9 OS on the SPARC platform. It is integrated into the Solaris 10 OS.

SSTM works with Fibre Channel attached storage (Direct Attached or SAN attached), and in the Solaris 10 (1/06) OS support for iSCSI was added.

Booting Servers Off SAN Attached Storage
Booting a server off SAN attached storage requires that the server be able to see its boot devices across the SAN even before the operating system is loaded. This is achieved by storing the boot LUN's WWN in the Boot PROM of the server or in the HBA.

If you wish to boot a server off a SAN and you have purchased your server and storage from the same company, then speak to them about your requirements.

If you have purchased your server and storage from different companies, you should initially contact the storage vendor about how to approach this, as it is usually they who test SAN booting of servers from various suppliers off of their storage, and only certain combinations of HBAs and switches will have been tested.

SANs and Tape
Storage Area Networks and tape drives with Fibre Channel interfaces allow flexible, high-performance backup solutions to be built.

Zoning is used to secure tape drives to server HBA ports in the same way as it can be used with ports on array controllers. LUN masking is not relevant to tape drives, and there is no multipathing for tape drives.

Array controller ports and tape drive ports can be accessed from the same HBA port on a server and can be in the same zone. That being said, it is an industry best practice to keep disk and tape in separate zones. This practice evolved to protect the tape drives from spurious RSCNs and also to ensure best performance.

Whilst RSCNs are now less of a concern, the sense of the second point becomes apparent when you consider that three LTO-2 Fibre Channel drives can consume all the data that a 2 Gbit HBA port can send to them.

SAN based backup solutions can very quickly use up a lot of switch ports, as each drive must be individually connected to the SAN, as must the HBA driving them. In many cases, the tape library robot arm requires its own switch port also.

The following example shows a single backup server connecting to twenty Fibre Channel tape drives with two drive ports per HBA port. This uses up 31 SAN ports.

Tape Library Sharing
Backup software allows tape libraries to be shared between multiple servers. This sharing of tape libraries may be done in two ways, the second of which is only possible using a SAN.

Static Tape Library Sharing
Multiple servers share a tape library, and the number of drives available to each server can be static.

To do this, the SAN is zoned so that each tape drive in the library is visible to only one server.

A master server controls the library robot. This master server may or may not have access to tape drives. The other servers are slaves so far as controlling the robot goes. The slave servers send tape cartridge mount and dismount requests to the library via the master using the LAN. The slave servers transfer data directly to the tape drives once the cartridges are loaded. This can be implemented with copper SCSI and Fibre Channel based libraries.

This approach allows a tape library to be shared, but could lead to some drives being under- or over-utilized.

Dynamic Drive Sharing
This is used where multiple servers share a tape library, and where some servers require very large amounts of tape drive resources at certain times, but where it would be useful to share those resources differently at other times. e.g. a large application on an enterprise server requires ten drives for overnight backup to complete in time, but it is desirable that those drives can be allocated two each to five smaller servers once that backup is complete.

To do this, the SAN is zoned so that each tape drive in the library is visible to multiple servers.

Master and slave servers work much as before. However, the master server now additionally determines which servers can use which drives at what time, based on backup schedules and policies.

This allows a tape library to be shared very flexibly between multiple servers, but the SAN design for this can be complex and can consume many switch ports and server HBA ports.

Managing SANs

Challenges of SAN Management
A SAN must be managed at multiple points:

• Server OS
• Switch
• Storage Array/Tape Library

The biggest challenge is understanding the dependencies of the various elements upon each other, as well as having to learn multiple tools. For example, a HBA has to be swapped on a server. The new HBA has a different WWN than the old one, so zoning information in the SAN and LUN masking information on the arrays has to be updated or a switch needs to be replaced – who should be told? Which applications will be affected?
Small SANs can be managed effectively using the individual element managers of the switches, storage arrays and tape libraries along with server OS features. However, as SANs grow, the amount of knowledge required to make a change can become significant.

In a large SAN, relatively simple operations require a detailed knowledge of the environment. Skilled operators, good documentation and rigorous change control can mitigate the potential issues that might arise when managing large SANs; however, such processes can be expensive to implement in people time, and can reduce the agility of an organization. A new breed of management tools have been created to address this.

SAN Management Applications
Ideally, a SAN Management Application should be able to perform management functions such as Switch Zoning, Array LUN Management and Full Path Management (e.g. creating a LUN and mapping it to a server HBA port, taking care of any re-zoning and LUN masking on the way) via a standard interface. Features like this are collectively known as Provisioning.

The SAN Management Application should normalize the management of the underlying elements so that
administrators can use the same GUI (or CLI) regardless of the brand of storage, switch, HBA and server. The benefits of this are huge as operators need learn only one tool for day-to-day work, and in understanding the relationships between the various elements, the SAN Management Application can reduce problems due to “driver error”.

Until the recently, SAN Management Applications relied on multiple vendors' proprietary management APIs to manage the various elements. It soon became clear that API swapping and licensing between various vendors was not a long-term solution, and the Storage Networking Industry Association (SNIA) started the Storage Management Initiative and developed the Storage Management Initiative Specification, known as SMI-S, which is still evolving today.

SMI-S defines a set of standard management APIs that allow a SAN Management Application to manage HBAs, Switches and Storage Arrays in a normalized fashion. The Storage Management Application uses SMI-S management interfaces to discover and manage elements.

The software component that interfaces between the SAN Management Application and the managed element is called a Provider. It is the Provider that is SMI-S compliant. The vendor of the element being managed usually writes the Provider and they map SMI-S operations to their proprietary API in the Provider.

Providers can be implemented in a number of places:

1. The Provider for an element can be integrated into the Storage Management application.
2. The Provider is in the device, e.g. on the service processor of an array or inside a switch.
3. The Provider takes the form of middleware (known as Proxies) that runs on an intermediate host and manages the dialogue between Storage Management application and the element.

An element's IP address or DNS name, along with security information (login information), is required to be able to discover it. If a proxy is used, then this information is required for the proxy, not the element.

The picture would be incomplete without being able to discover servers. Discovering a server usually requires that an application-specific agent first be installed on the server to get all of the required information.

Without an agent installed, the Storage Management Application cannot find out information about filesystems, files, applications or the server itself. An exception is Microsoft Windows. Microsoft Windows exposes some information through the Windows Management Instrumentation (WMI) interface. However, this information is not as complete as that which a Storage Management Application's agent would produce, especially around mapping HBA's, volumes and file systems together.

So SAN Management Applications can be run agentless, but the information available from servers will be limited. Other than with Microsoft Windows, all that will usually be discovered is the HBA ports via the switches, and they would need to be manually grouped to form a “virtual server”. All SAN Management tools have a grouping function, since without a host agent the Storage Management application has no idea that HBAs are in the same server.

Once all the necessary agents and Providers are in place, the SAN Management Application discovers details of all the elements on the SAN and stores them in a database. The application can then determine the relationships between the various elements from the information it has extracted, and can validate changes against the database before implementing them on the actual elements.

Revisiting the earlier example of a HBA change, we now have the capability to look up every point in the SAN where the old WWN was used and change it to the new one, or have the tool do it for us via a wizard type interface. For more on the SNIA and the Storage Management Initiative see Appendix B.

The Sun StorageTekTM Operations Manager software is a suite of SMI-S compliant SAN Management products. See reference (iii) for more on this software. Software such as this does not totally remove the need to use individual element managers, as the management standards do not yet extend to the management of features like array-to-array replication or snapshots (though work on APIs for these kinds of features is in progress). However, they will perform the bulk of day-to-day SAN management tasks quickly and efficiently, as well as handling SAN health and event management from a single application.

Fibre Channel is a well-established, widely deployed technology with a proven track record. This paper has introduced the reader to the the basics of Fibre Channel, and has explained how Fibre Channel SANs are built, secured and managed.

In the Further Resources section of this document you will find a list of web sites and books to use as a starting point for additional research into Fibre Channel SANs. Reference (iv) provides an introduction to iSCSI and IP based SANs.

i. Zoning Implementation Strategies for Brocade SAN Fabrics
ii. Increasing Storage Area Network Productivity
http:// www.sun.com /blueprints/0704/817-7544.pdf
iii. Sun StorageTek Operations Manager
iv. IP SAN Fundamentals: An Introduction to IP SANs and iSCSI (on BigAdmin site):
Read more!

Say yes to blogging

First Blog Read more!
